SCREENING CONVEY:
CCS – SHAFTLESS SCREW CONVEYOR
The CCS – SHAFTLESS SCREW CONVEYOR is our highly customizable solution for the waste conveyor.
It is constituted by a cochlea with a shaftless screw which, once actuated by the motor gear, rotates on its own transporting the loaded material towards one or more discharge mouths (eventually equipped with a guillotine closing).
The machine can be supplied in two different configuration:
On pull: where the spiral that pulls the material towards the discharge mouth in the vicinity of the geared motor.
On push: where the material is pushed towards the outlet at the opposite side of the gear motor.


The drive can be effected via direct connection of the spiral to the gear motor, or by a geared motor transmission system - chain - flange of the spiral shaft.
The absence of the central shaft makes these machines suitable for the transport of sticky materials,
typically sludge and sediment, which would otherwise tend to stick to the shaft of the loop. The machine's working range is between 0 ° and 30 ° of tilt, with a carriage return that falls with increasing inclination.


Our conveyors can be manufactured in vertical installation version called CCS-V – VERTICAL SHAFTLESS SCREW CONVEYOR .
This solution has the great advantage to reduce system footprint necessary and to lift up screenings/sludge
until 20mt height. Execution can be made with shaftless spiral rotating inside an external pipe or two U
troughs bolted together.




CCS200 – SHAFTLESS SCREW CONVEYOR




CCS – CCS-V – Capacity table for screenings and sludge

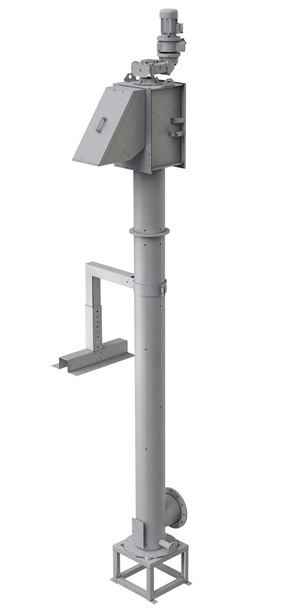

CCS-V250 – VERTICAL SHAFTLESS SCREW CONVEYOR

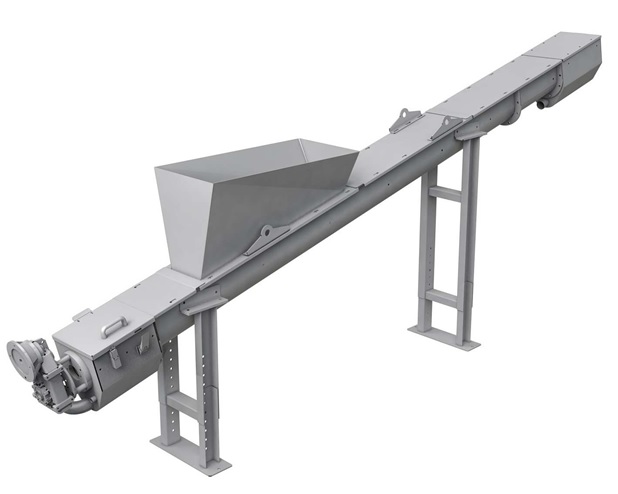

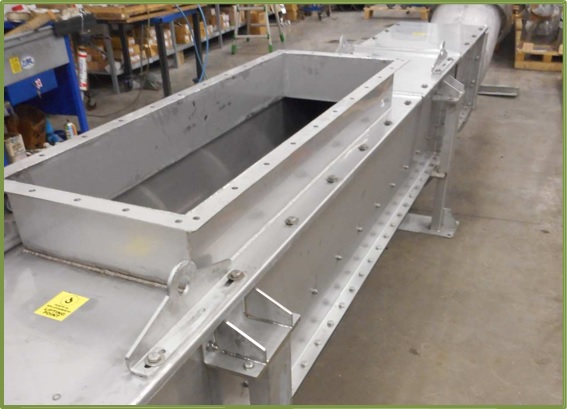

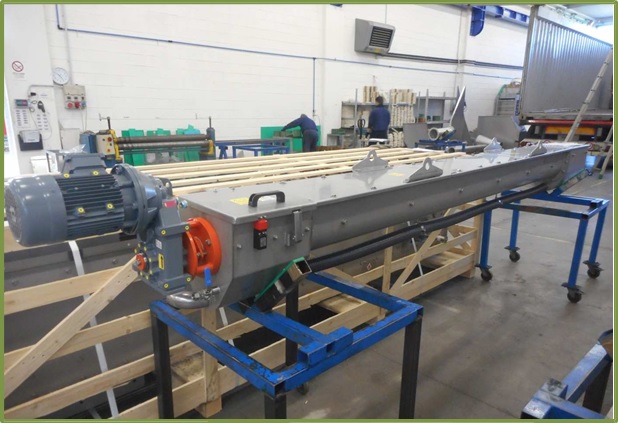

CCS shaftless screw conveyor




CCS shaftless screw conveyor with rotate system

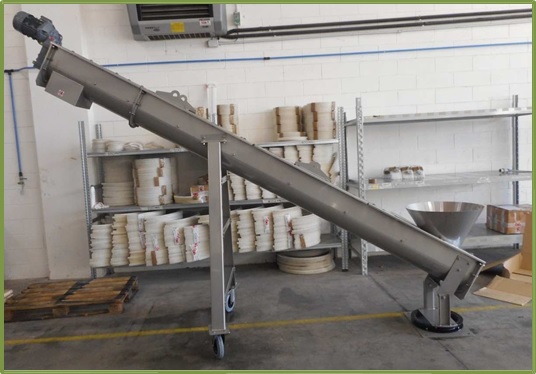

CCS shaftless screw conveyor

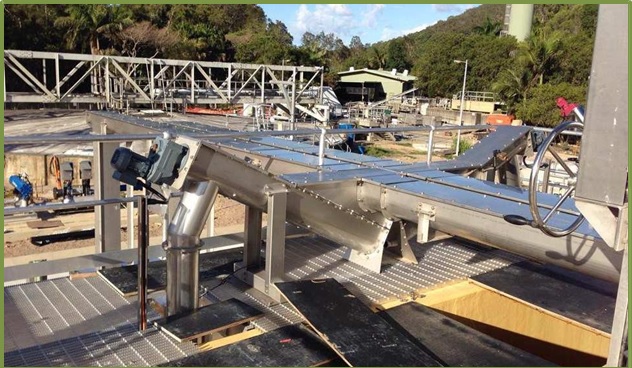

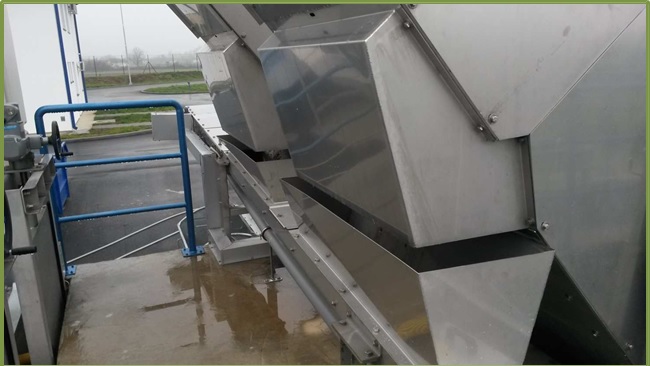

CCS shaftless screw conveyor in plant with rock trap






SCREENINGS PRESS AND CONVEYING:
CP – SHAFTLESS SREW CONVEYOR AND COMPACTOR
The CP – SHAFTLESS SCREW CONVEYOR AND COMPACTOR is a combined unit used for conveying and compaction of the waste.

It consists of the drainage area, normally placed in front of the loading hopper, which has the function of allowing the evacuation of the liquids contained in the input material; the transport area, consisting of a trough and a spiral without central shaft, and finally the compaction module, which allows a reduction in volume and weight of waste by over 50%, depending on the type of material transported.
The spiral is normally connected directly to the geared motor by a flanged shaft and is present a seal assembly to prevent leakage of liquids from the gear motor zone. The machine works in a range of inclination 5 ° - 35 °, and on request can be installed a washing system in the transport zone in case of special executions .

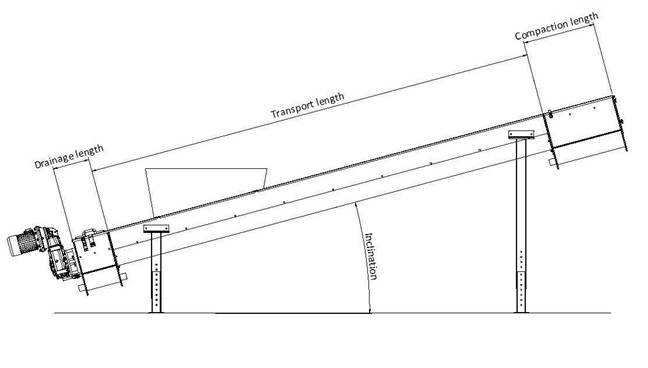

CP200 – SHAFTLESS SCREW CONVEYOR AND COMPACTOR




The CP can be manufactured in Stainless Steel AISI304-316 (L), and is fully customizable according to the customer needs, but anyways we offer a standard range which can help the costumer in his final choose:

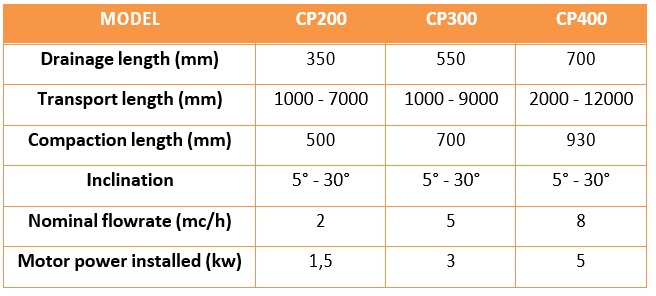

CP - Standard Dimensions

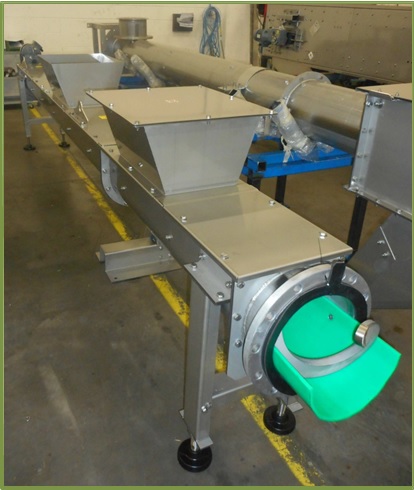

CP shaftless screw conveyor and compactor



CP shaftless screw conveyor and compactor

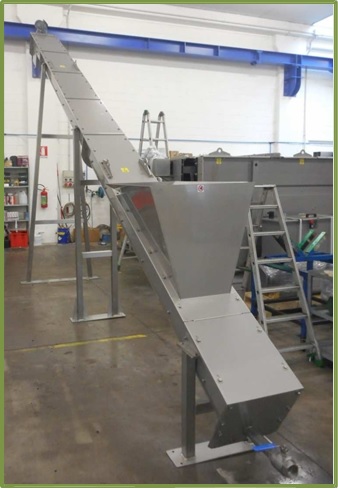

CP shaftless screw conveyor and compactor vertical hoppers view




CP shaftless screw conveyor and compactor axial outlet view



SCREENINGS PRESS AND CONVEYING:
CPP – SCREW SCREEN PRESS
The CPP - SCREW SCREEEN PRESS simultaneously provides the function of drainage and waste compaction. The compactor can be placed directly below the output of a coarse filtration machine or it can be fed by a conveyor.


The machine, is composed of an input hopper connected to a tubular trough that composes the waste drainage area and it’s equipped with a washing system to ensure a more high removal of organic substances contained in the waste materials.
The compacting zone is realized by a discharge pipe shaped "proboscis" which give to the machine great dewatering performance.
The excellent cleaning of the gratings and the high degree of compaction (up to 60%) reached, allow to
reduce, odor problems and disposal costs.

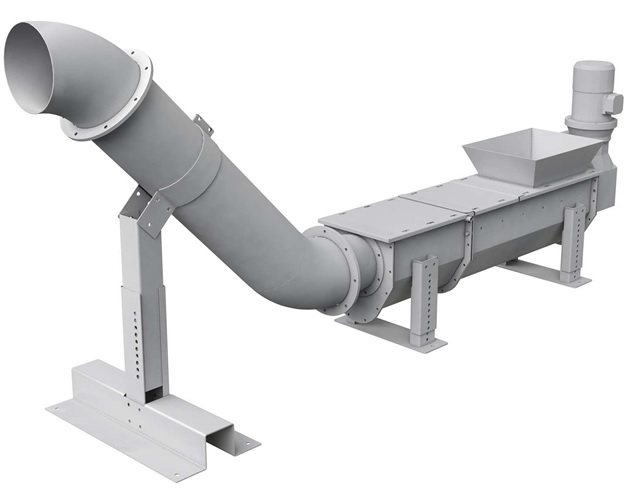

CPP300 – SCREW SCREEN PRESS



The CPP can be manufactured in Stainless Steel AISI304-316 (L), and is fully customizable according to the customer needs, but anyways we offer a standard range which can help the costumer in his final choose:

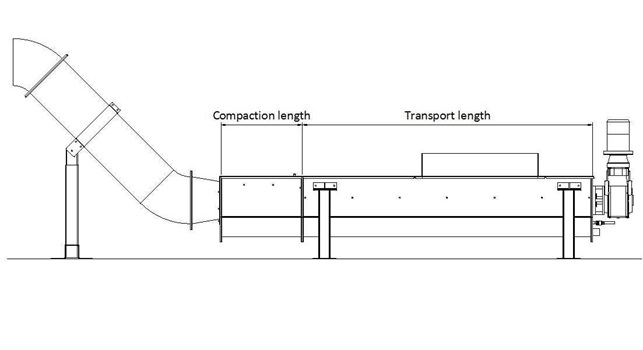

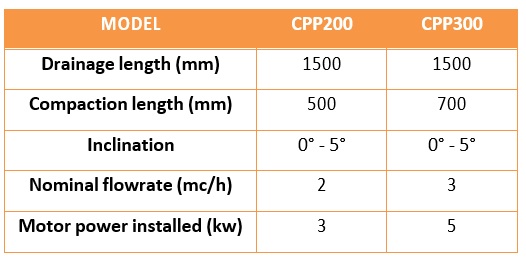

CPP - Standard Dimensions

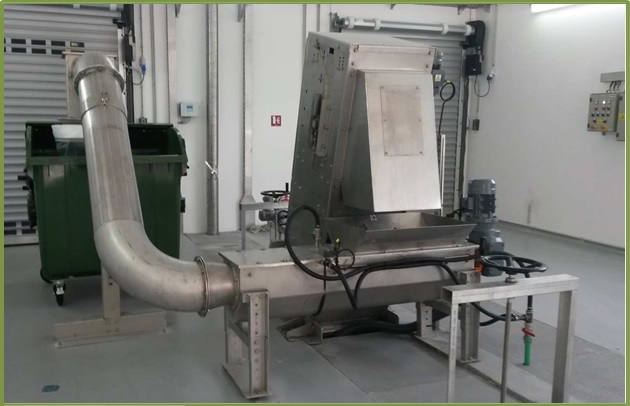

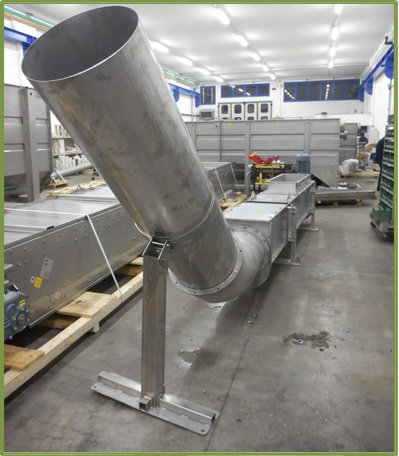

CPP screw screen press





CPP hopper detail





CPP outlet pipe

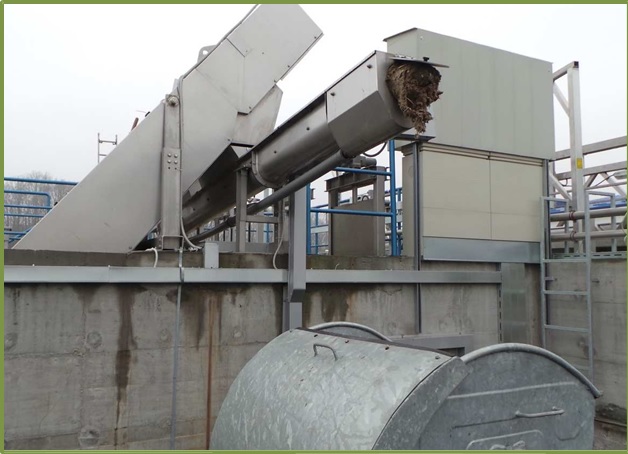

CPP screw screen press in plant with an SMC multi raked bar screen
